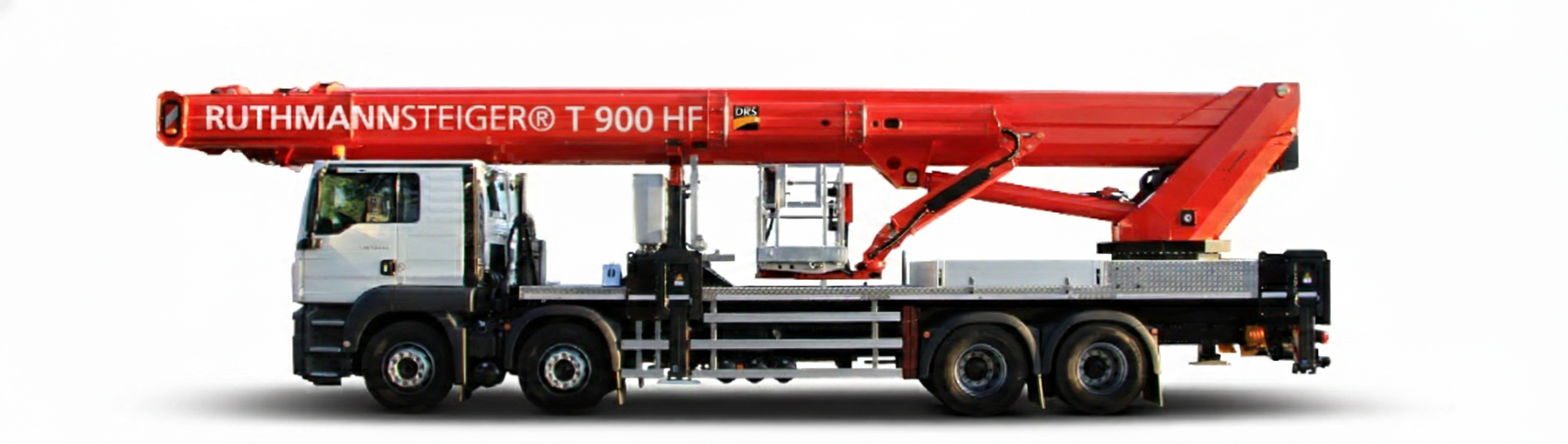

STEIGER® T 900 HF
SKY performance
Summary of advantages
- 90 m working height
- Innovative dual concept for extended application range
- Approx. 42 m lateral outreach
- Highflex jib (RÜSSEL®) – 220° swivel range
- Highflex working basket – 440° rotation angle
- 5-axle chassis (total weight 48-52 tonnes)
- Various cab options (including sleeper cab)
- Familiar control and operating technology (COCKPIT)
- Extensive range of options available
- Many international large equipment references
- Worldwide RUTHMANN service support

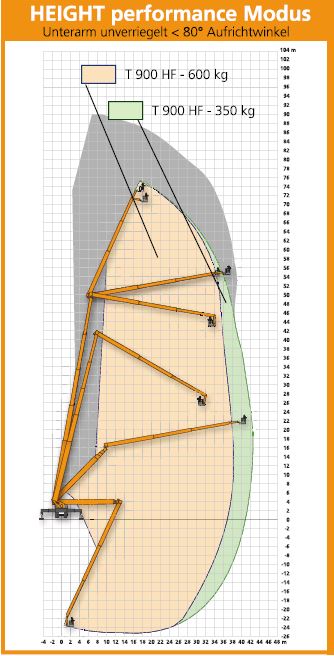

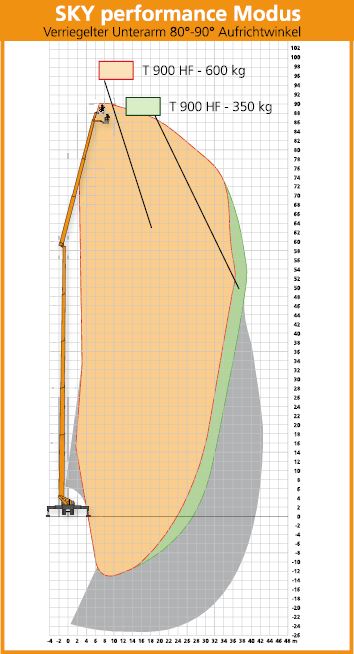

Dual Concept - SKY & HEIGHT Performance
The innovative dual concept extends application range and provides better utilization. Switch between SKY performance mode for maximum height and HEIGHT performance mode for maximum outreach.
Technical specifications
| Working height | 90.00 m |
| Lifting height | 88.00 m |
| Outreach | 42.00 m |
| Upper boom length | 33.00 m |
| Total vehicle length | 14.99 m |
| Total height | 4.00 m |
| Swivelling angle (jib/RÜSSEL®) | 220° |
| Range of rotation | 540° |
| Work basket size | 3.82 x 0.97 m |
| Work basket load capacity | 600 kg |
| Permissible inclination | 1° |
| Permissible total weight | 48,000 - 52,000 kg |
Description
The SKY performance STEIGER® T 900 HF features DRS (Dynamic Reach System) and an innovative dual concept. It is currently the most flexible large machine in the 90 m class for truck-mounted work platforms, with a lateral outreach of up to 42 m.
