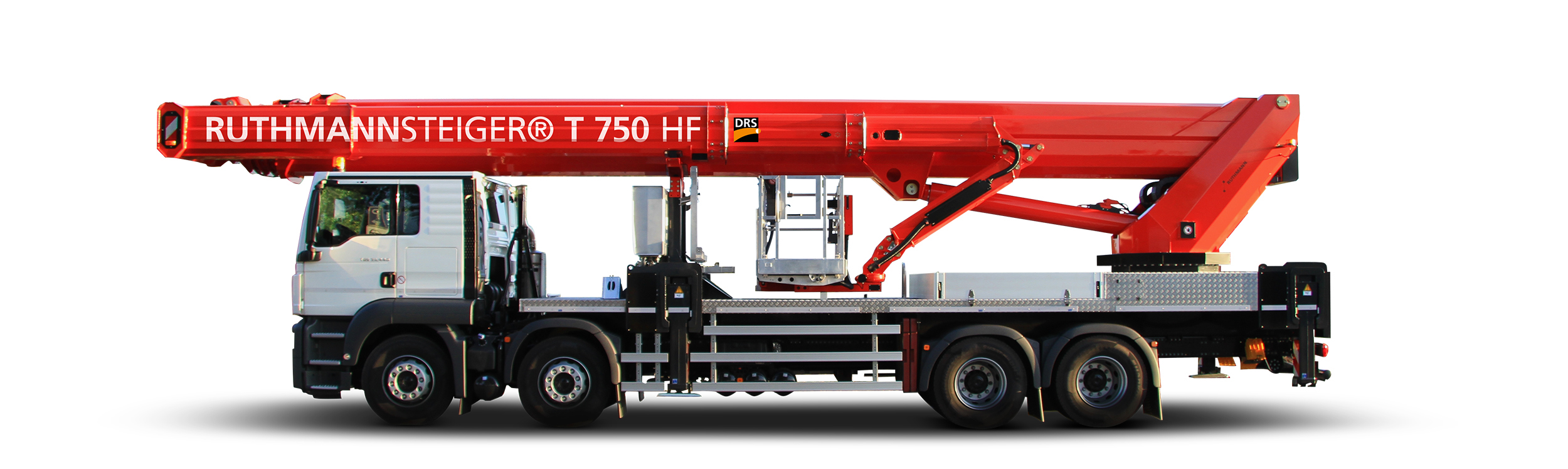

STEIGER® T 750 HF
HEIGHT performance Maximus
Summary of advantages
- 75 m working height
- 42.2 m outreach
- 13.99 m total vehicle length (depends on vehicle type)
- Top performance data due to multi-bevelled boom technology
- 'Standing' working basket for under/up and all over/back possibilities
- Generous 600 kg working cage load capacity
- Working below ground possible
- More possibilities with HEIGHT performance special features
- Automatic set-up/retraction mechanism
- Hydraulically extendable aluminium working cage
- Maintenance-friendly boom system
Dual Concept - SKY & HEIGHT Performance
Technical specifications
| Working height | 75.00 m |
| Lifting height | 73.00 m |
| Outreach | 42.20 m |
| Total vehicle length | 13.99 m |
| Total height | < 3.99 m |
| Swivelling angle (upper boom) | 180° |
| Swivelling angle (jib/RÜSSEL®) | 220° |
| Range of rotation | 500° |
| Work basket size | 2.42 x 0.97 m |
| Maximum work basket size | 3.82 x 0.97 m |
| Work basket load capacity | 600 kg |
| Permissible inclination | 2° |
| Permissible total weight | > 32,000 kg |
Description
The STEIGER® T 750 HF represents HEIGHT performance at its maximum. With 75 m working height and 42.2 m outreach, this model offers outstanding performance for demanding applications.
