STEIGER® T 700 HF
With the new STEIGER® T 700 HF, RUTHMANN presents a further highlight of German engineering.
Summary of advantages

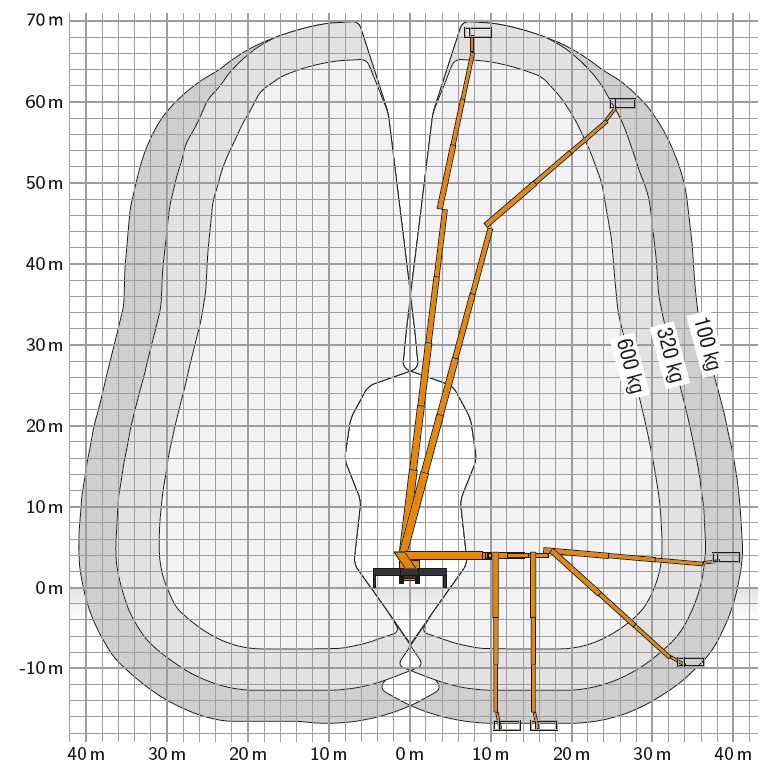

- 70 m working height

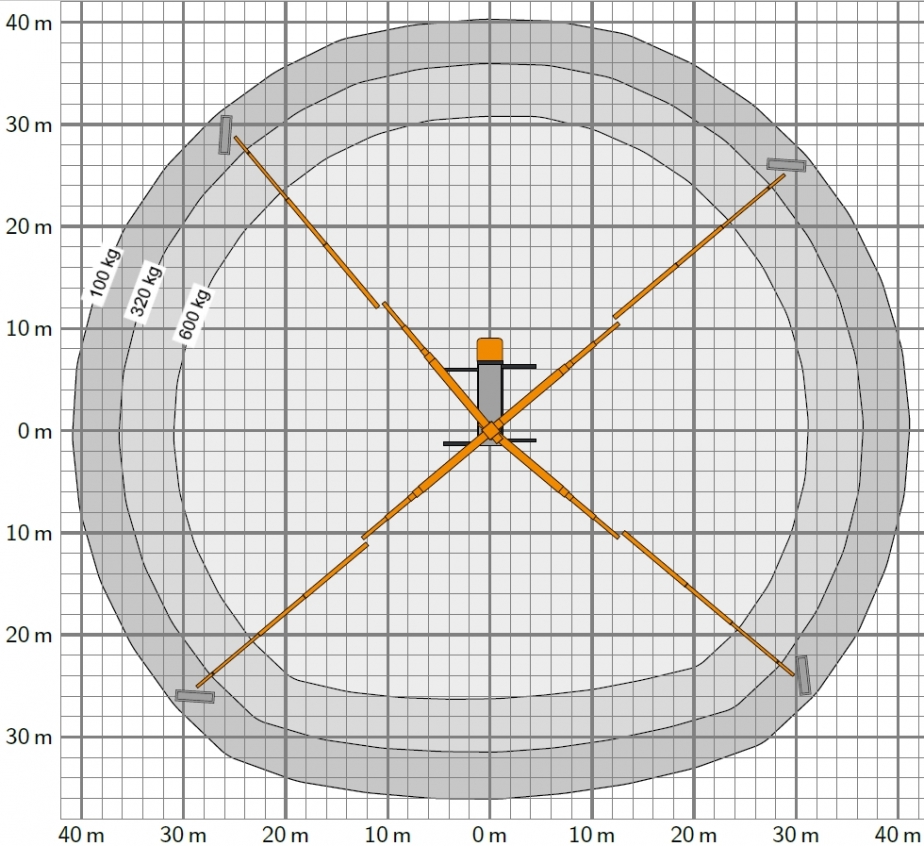

- 41 m outreach, 24.6 m upper boom outreach
- 11.99 m total vehicle length: compact design
- Top performance data due to multi-bevelled boom technology
- Highflex jib (RÜSSEL®) – 220° swivel range
- Highflex working basket – 440° rotation angle
- Generous 600 kg working cage load capacity
- Working below ground possible
- Automatic set-up/retraction mechanism
- Hydraulically extendable aluminium working cage
- Maintenance-friendly boom system
Technical specifications
| Working height | 70.00 m |
| Lifting height | 68.00 m |
| Outreach | 41.00 m |
| Upper boom outreach | 24.60 m |
| Total vehicle length | 11.99 m |
| Total height | < 3.99 m |
| Swivelling angle (upper boom) | 180° |
| Swivelling angle (jib/RÜSSEL®) | 220° |
| Range of rotation | 500° |
| Work basket load capacity | 600 kg |
| Permissible inclination | 2° |
| Permissible total weight | > 32,000 kg |
Description
With the new STEIGER® T 700 HF, RUTHMANN presents a further highlight of German engineering. This model combines an impressive 70 m working height with a compact design of less than 12 m total vehicle length, making it ideal for work in confined spaces.
