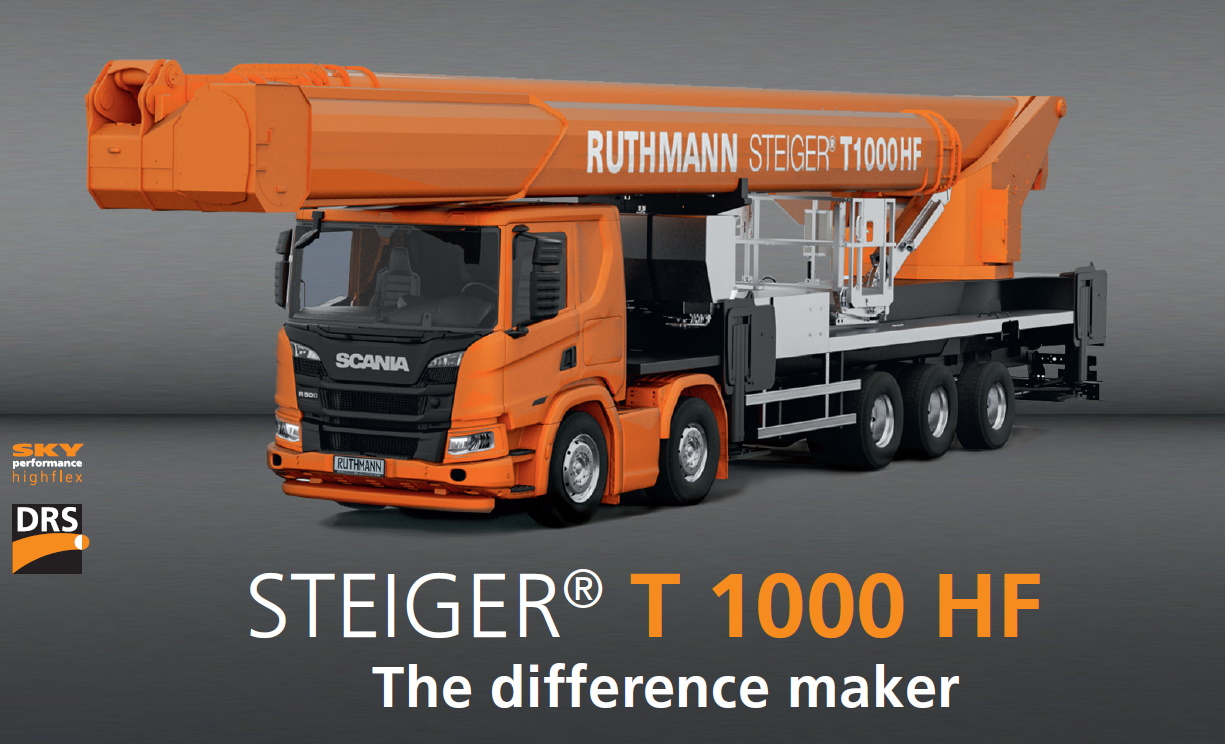

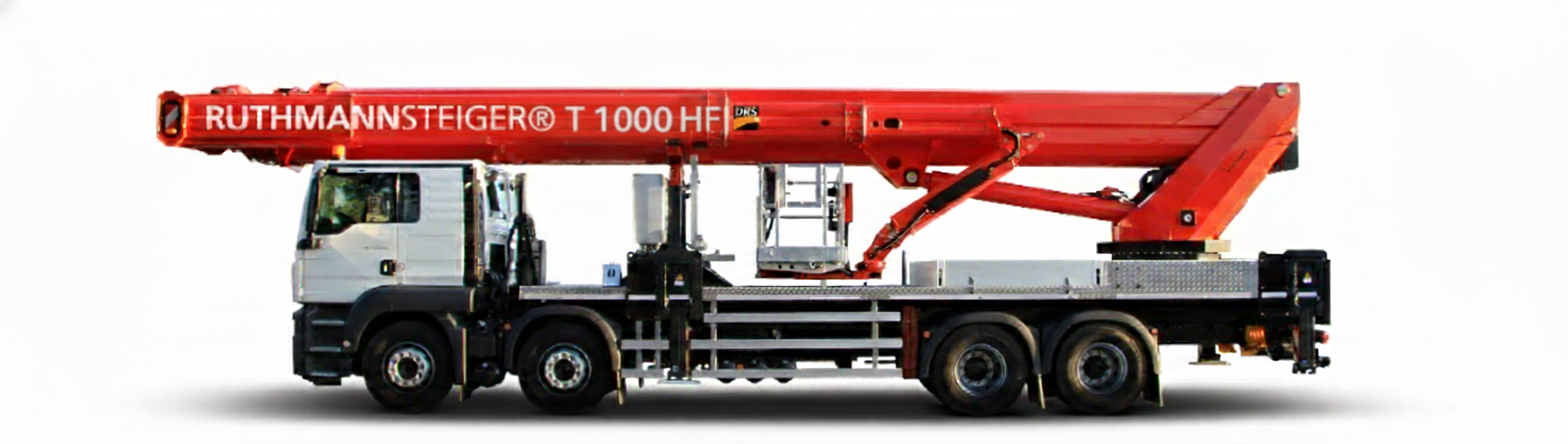

STEIGER® T 1000 HF
The difference maker
Summary of advantages

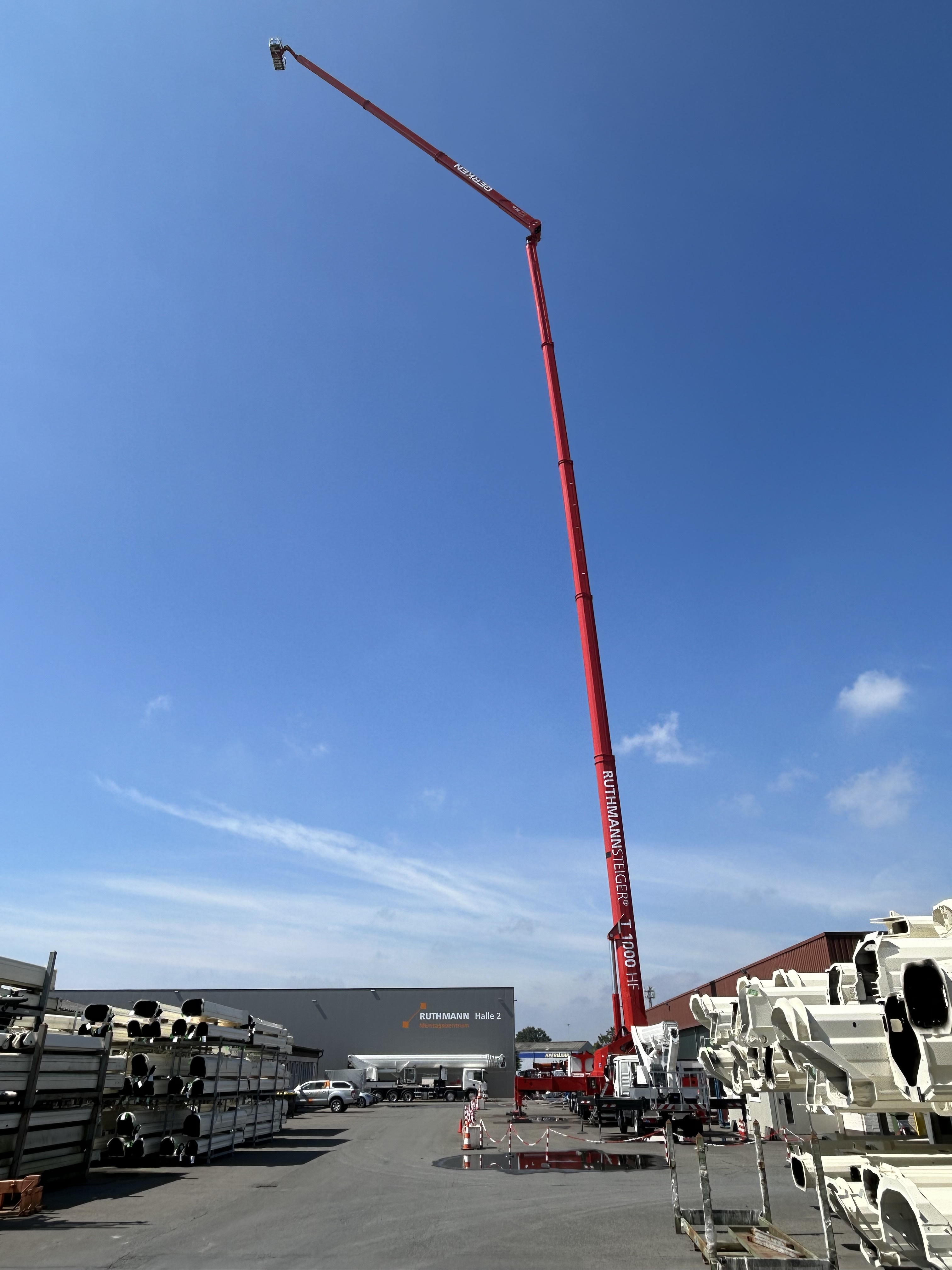

- Working height: 100 metres
- Lateral outreach: up to 39 metres
- Weight: from 53 tonnes – 10 t lighter than competition
- Compact design: Overall length of 16.35 metres
- High-performance technology: designed for maximum stability and efficiency

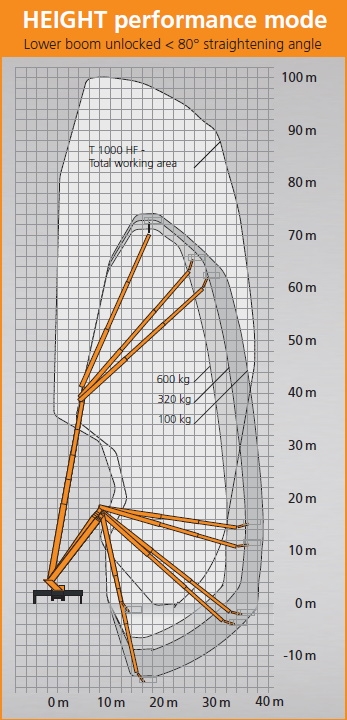

Dual Concept - SKY & HEIGHT Performance
The T 1000 HF features an innovative dual concept with SKY performance mode for maximum working height of 100 m and HEIGHT performance mode for optimized outreach capabilities.
Technical specifications
| Working height | 100.00 m |
| Lifting height | 98.00 m |
| Outreach | 39.00 m |
| Total vehicle length | 16.35 m |
| Work basket load capacity | 600 kg |
| Permissible total weight | > 53,000 kg |
Description

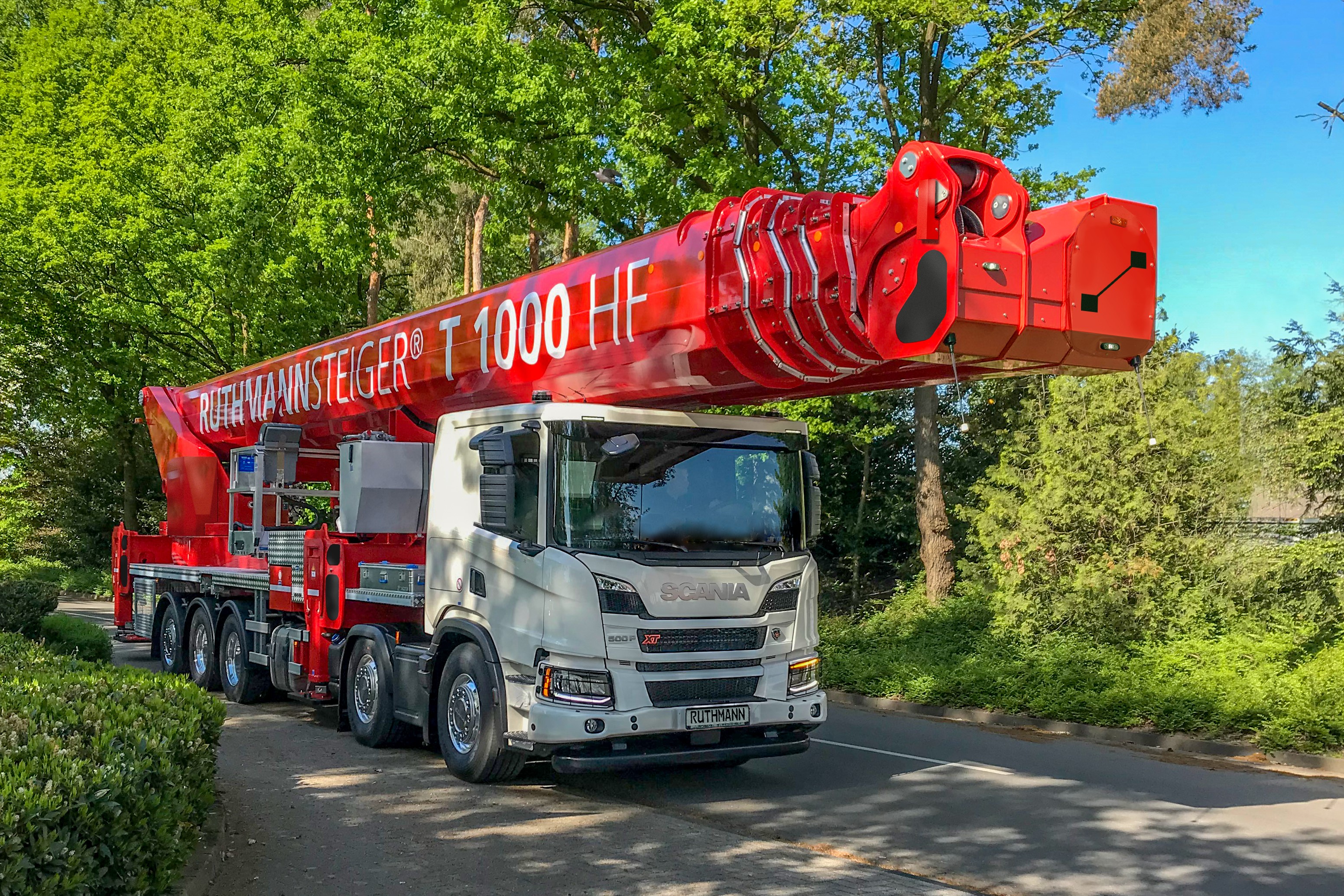

With the STEIGER® T 1000 HF, RUTHMANN is setting new standards in height access technology. This innovative model reaches an impressive 100 metres working height and a lateral outreach of up to 39 metres - meaning that the 100 m truck-mounted access platform outperforms the competition by up to 10 metres. Built on a standard chassis with a total weight of 53 tonnes or more, the STEIGER® T 1000 HF is around 10 tonnes lighter than comparable models and, with an overall length of just 16.35 metres, is ideal for flexible use.
